MIPI interface 7 inch 1024×600 resolution IPS LCD module

Item7 inch 1024×600 MIPI LCD display
Model NoPV07031LZR30G
Resolution1024×600
Outline Dimension164.90(W)*100.00(H)*2.6(T)
Active Area(mm)154.21(W)*85.92(H)
Brightness220nits
Viewing AngleAll
InterfaceMIPI
PIN30
Operating Temperature-10 to +60℃
Storage Temperature-20 to +70℃
TouchCapacitive touch screen
BoardHDMI board

For product pricing,customization,or other inquiries:

Share to:

7 inch 1024×600 MIPI interface IPS 220NITS brightness LCD display

1. PV07031LZR30G mainly application for  Industrial, medical equipment.
2. It with IPS/ All/ Wide viewing angle, 1024×600 resolution , 220 nit brightness ,MIPI interface , existing capacitive and  HDMI board to to support Raspberry PI.
3. It also can custom touch panel as customer ‘s requirement .
I4. t is A grade product , the good quality well use for Industrial ,medical application. And it have EMI protection.

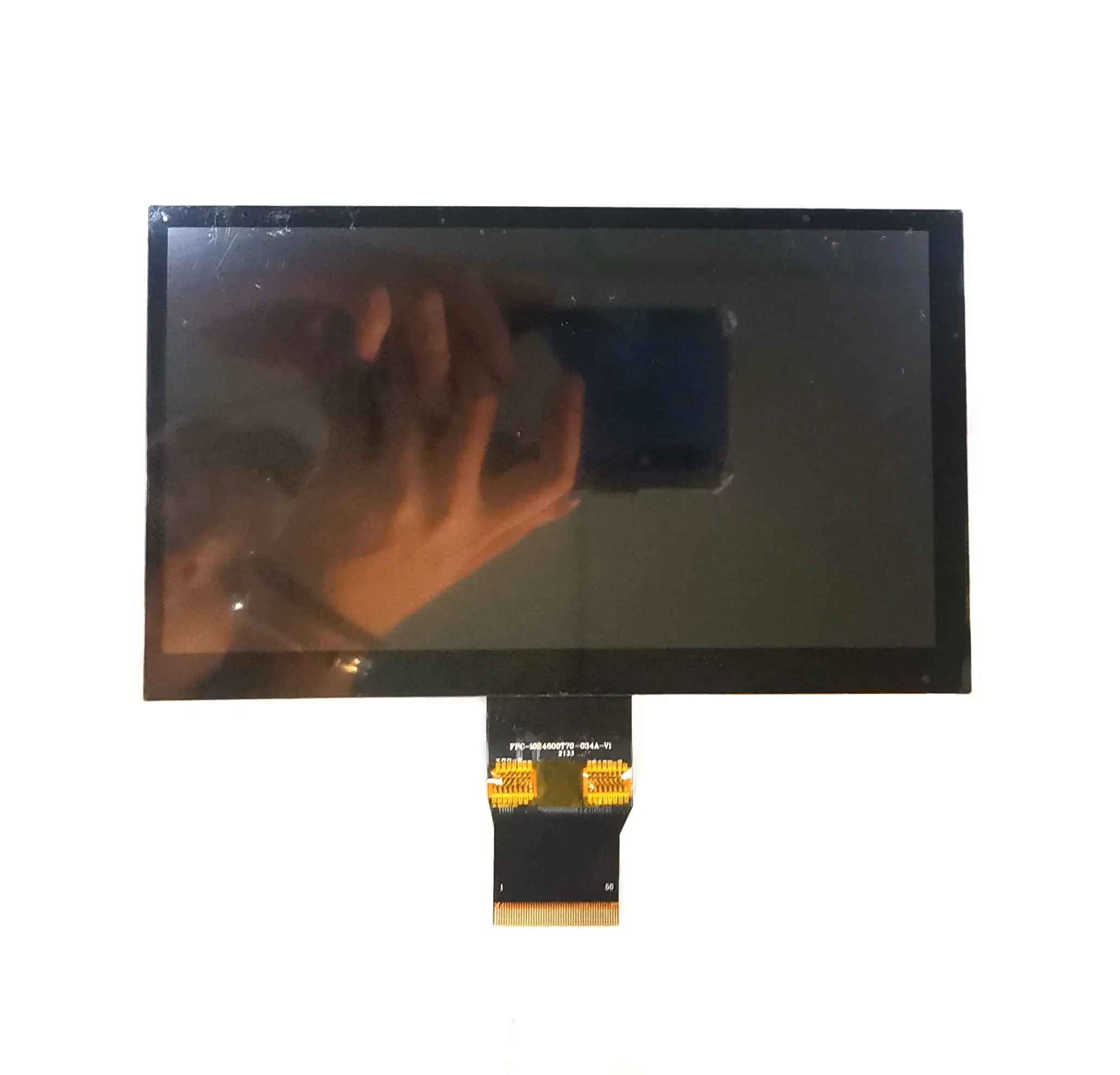

7 inch 1024×600 all view LCD display front view

7 inch display front

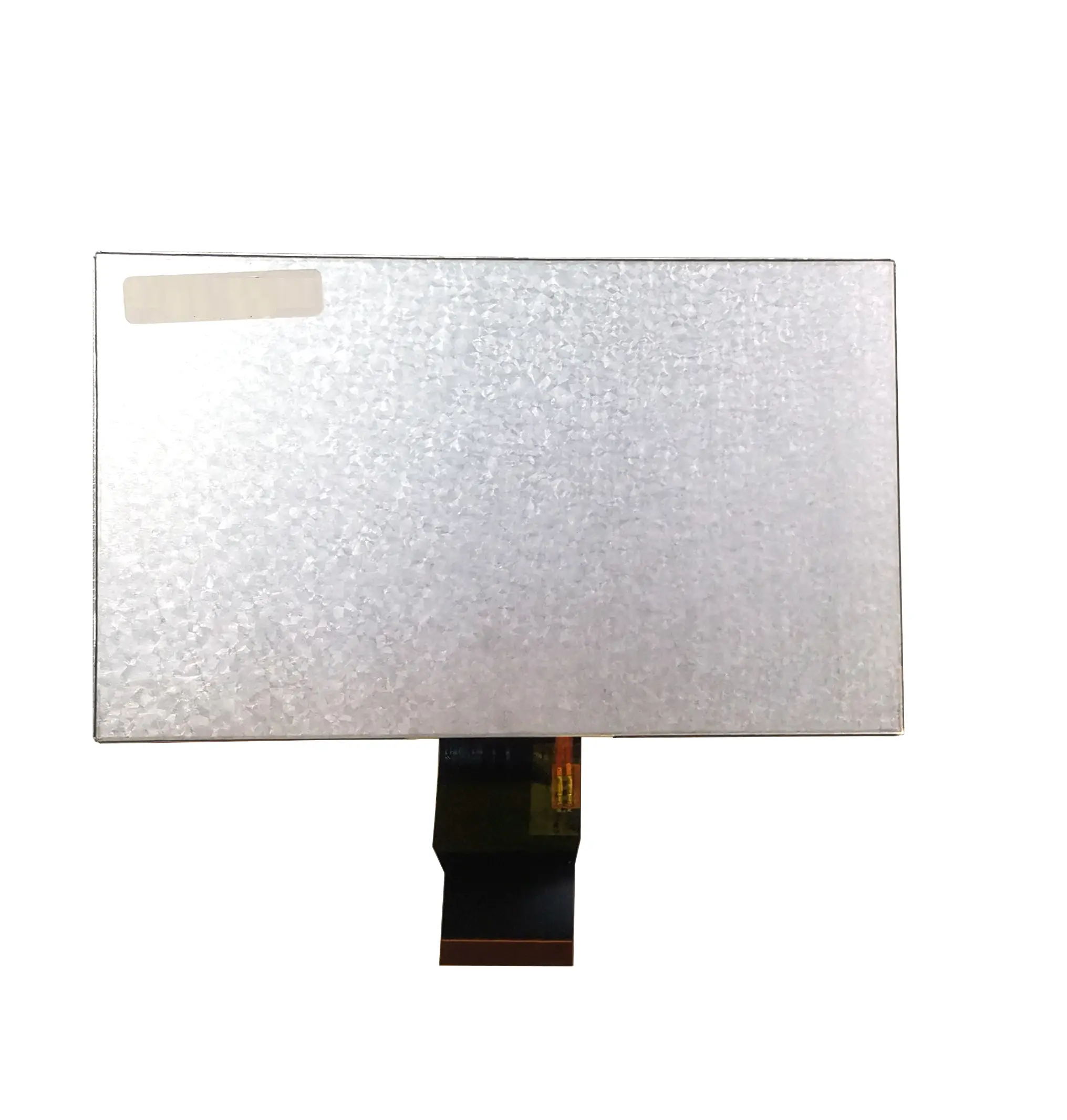

7 inch 1024×600 all view LCD display back view

7 inch display back

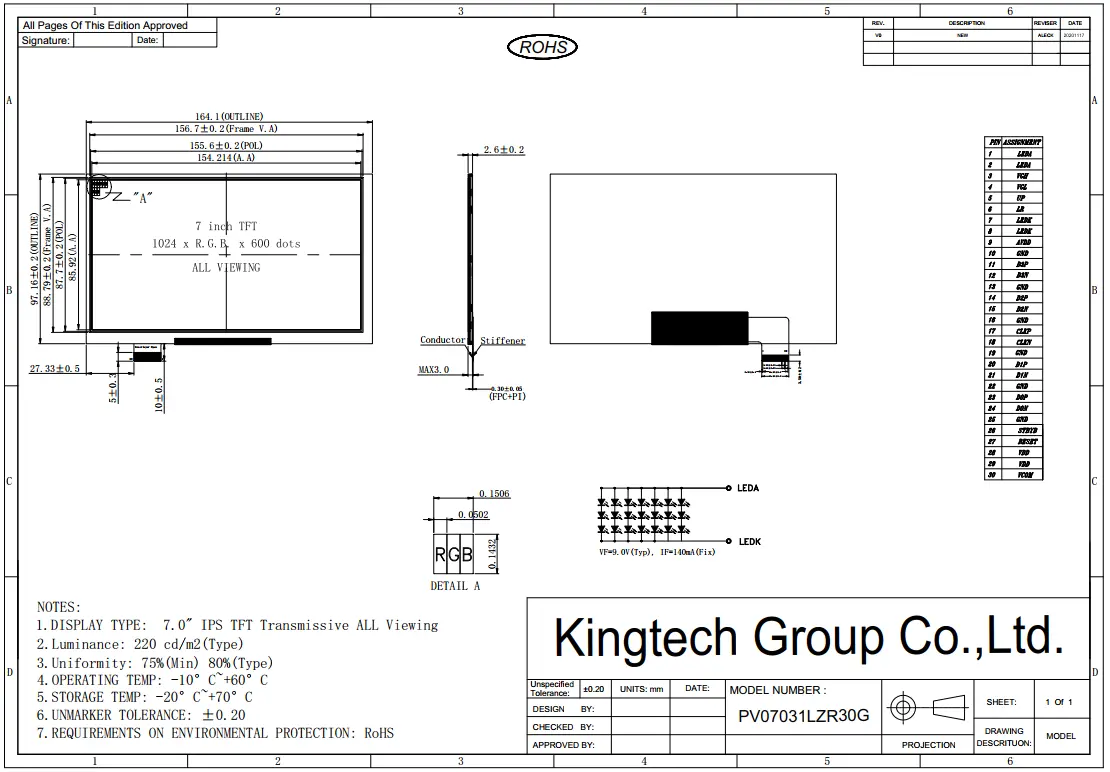

7 inch 1024×600 all view LCD display Machine Drawing

机械图
