Oem 1280*800 40 pins lvds outdoor 1000 nit 10.1 inch lcd ips display

Item10.1 inch ips capacitive touch panel
Model NoPV10109LZR40G-CO
Resolution1280 x 800
Outline Dimension229.80(W) x 149.00(H) x 5.95(T)
Active Area(mm)216.96(W) x 135.60(H)
Interface8-BIT LVDS Interface
Viewing AngleAll
LED life50000h
Display ModeTransmissive / Normally Black
Operating Temperature-30℃ to +80℃
Storage Temperature-30℃ to +80℃
Touch screenI2C / USB capacitive touch/ optical bonding
BoardHDMI board

For product pricing,customization,or other inquiries:

Share to:

10.1 inch1280x800 1000nits LVDS  IPS capacitive touch display

1. PV10109LZR40G mainly application for industrial device, vehicale and medical devices
2. It with 1280×800 resolution high definition , LVDS interface , IPS full viewing angle , 1000nits high brightness , -30℃~80℃wide work temperature, it with existing capacitive touch panel/optical bonding and HDMI board to support Raspberry PI .

3. And it can custom the capacitive resistive touch panel  as customer ‘s requirement .
4. It is sunlight readable , it can be well used for both indoor and outdoor.

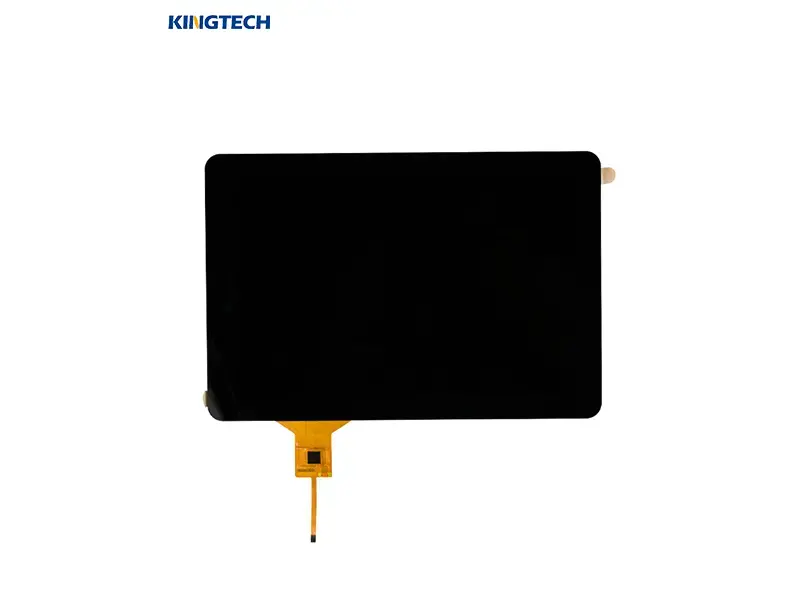

10.1 inch touch screen display front view

ips lcd display

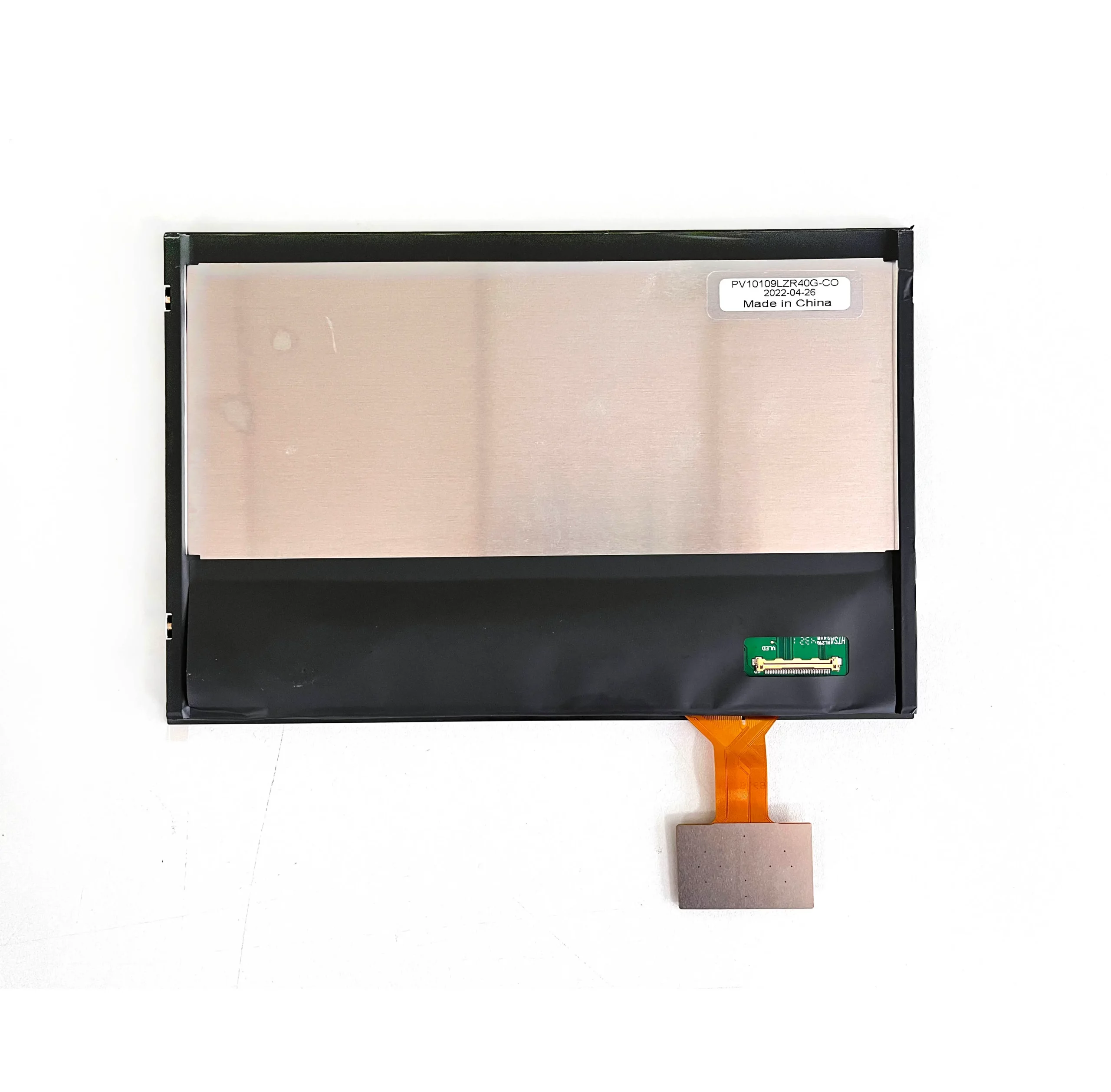

10.1 inch capacitive touch display back view

ips lcd display

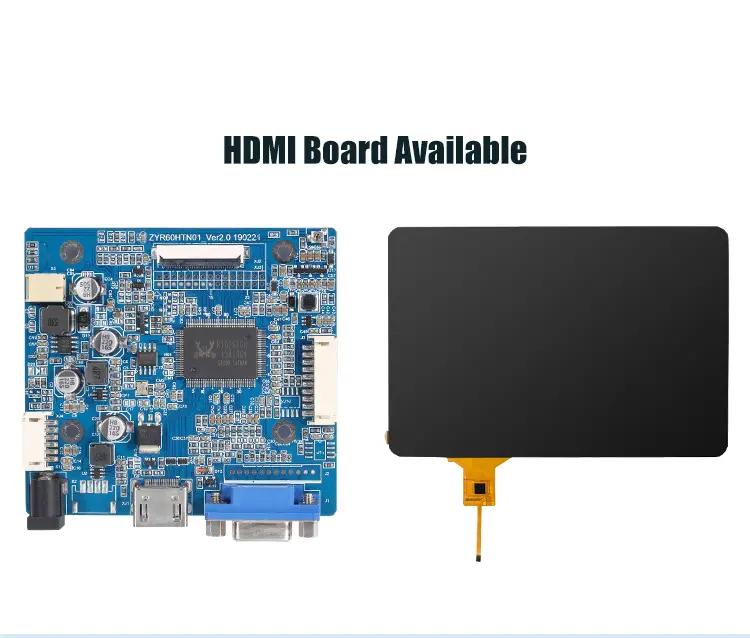

10.1 inch sunlight readable LCD display with HDMI board


10.1 inch LVDS touch screen display Machine Drawing
