Item | 3.5inch 480×272 TFT touch screen |
Model No | PV03501TD40B-R |
Resolution | 480×272 |
Outline Dimension | 86.80(W)x56.50(H)x3.90(T) |
Active Area(mm) | 77.79(W)x43.52(H) |
Interface | 24bit RGB interface |
Viewing Angle | 6:00 |
Driving IC | OTA5180A |
Display Mode | TFT/TRANSMISSIVE |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Brightness | 250nits |
Touch screen | Resistive and capacitive touch screen |
3.5 inch 480×272 resolution RGB interface LCD with resistive touch
1.PV03501TD40B-R mainly application for handheld device
2.It with 480×272 resolution , 24-bit RGB interface, OTA5180A Driver IC, 250nits brightness.
3.And it can custom capacitive and resistive touch panel as customer ‘s requirement;
4.It is A grade product , the good quality well use for Industrial ,medical application.

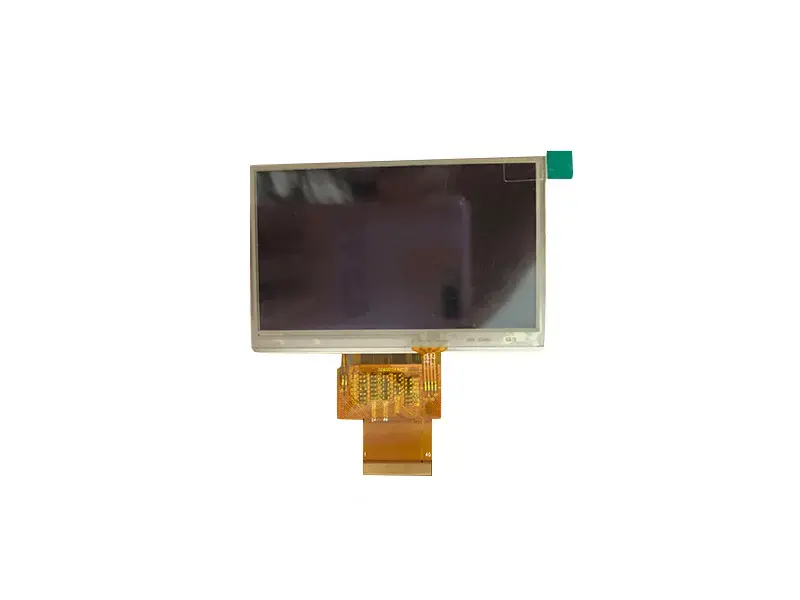

3.5inch 480×272 TFT touch screen Front view

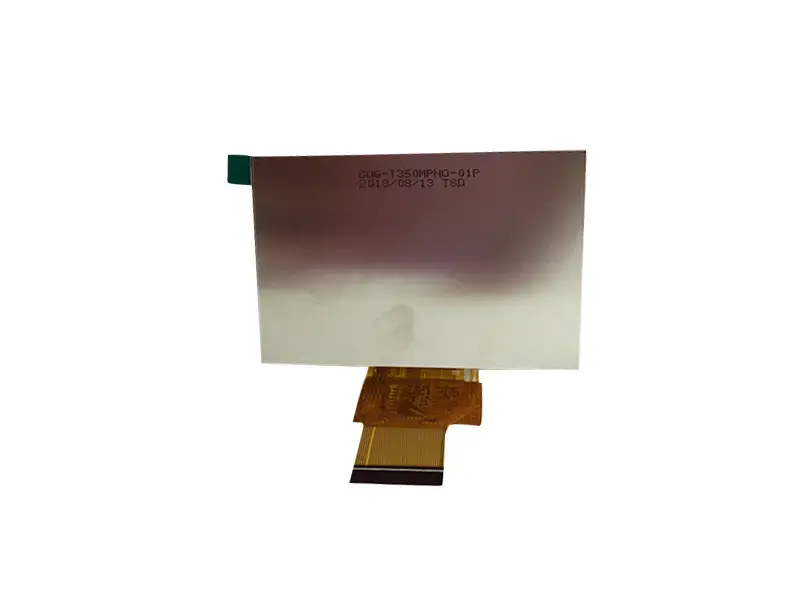

3.5inch 480×272 TFT touch screen Back View
