Item | 3.5″ 320×240 QVGA TFT touch screen |
Model No | PV03501TYD54C |
Resolution | 320*240 |
Outline Dimension | 76.90*63.90*3.27 MM |
Active Area(mm) | 70.08*52.56 |
Interface | 24BIT RGB+SPI |
Viewing Angle | 12 O’clock |
Driving IC | HX8238D |
Display Mode | TFT/TRANSMISSIVE |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Response time | 40ms |
Brightness | 300nits / up to 1000nits |
Touch screen | Resistive and capacitive touch screen |
3.5 inch 320×240 resolution RGB/SPI/MCU interface LCD display
1. PV03501TYD54C mainly application for handheld device
2. It with 320×240 resolution . RGB, SPI and MCU interface , HX8238D/SSD2119 Driver IC.
3. And it can custom capacitive and resistive touch panel as customer ‘s requirement;
4. It is A grade product , the good quality well use for Industrial ,medical application .

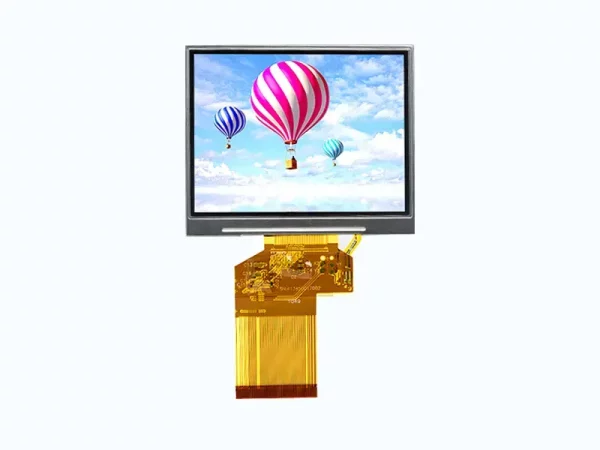

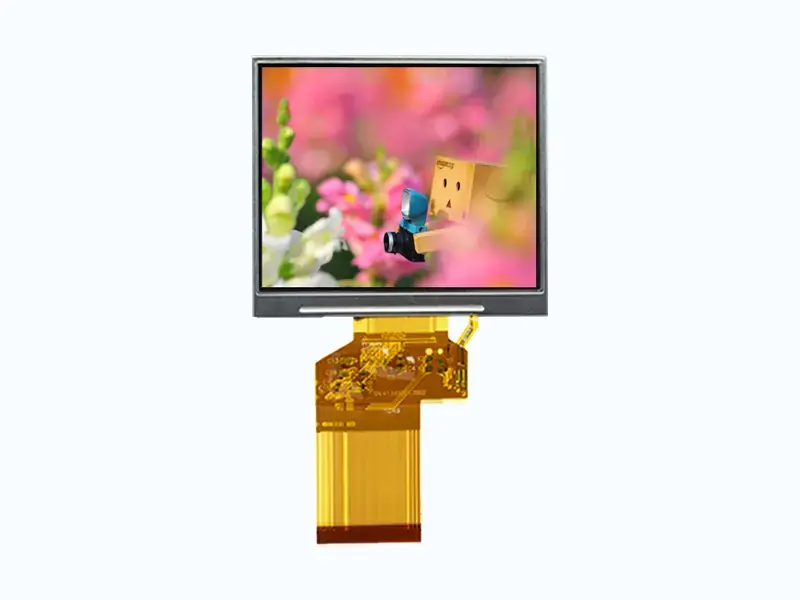

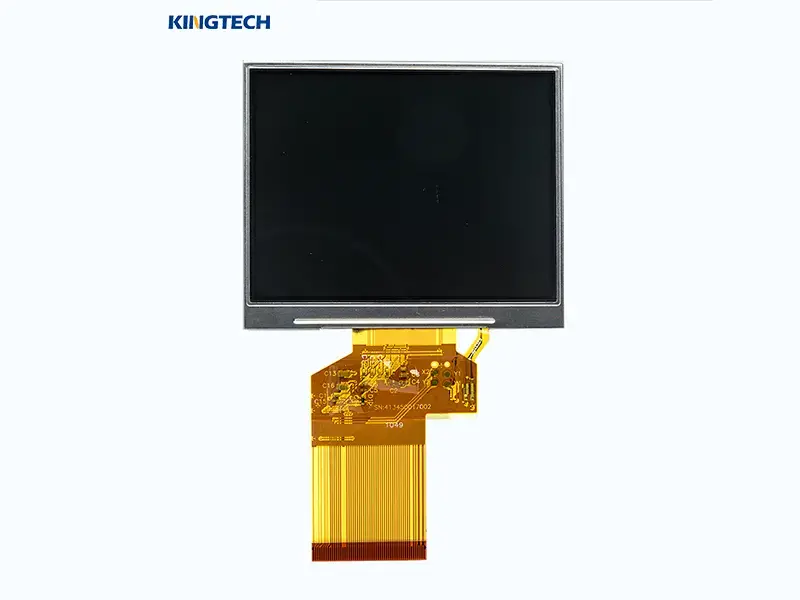

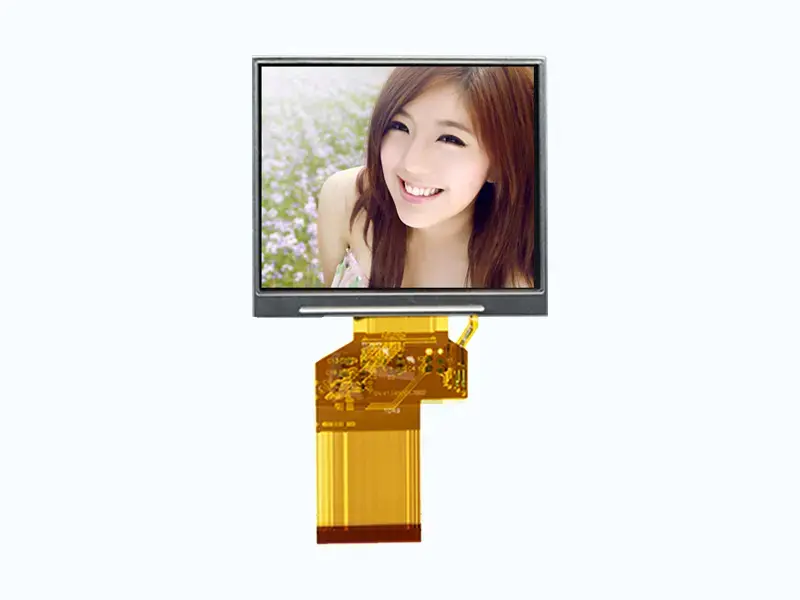

3.5 inch 320×240 HX8238D IC LCD display front view

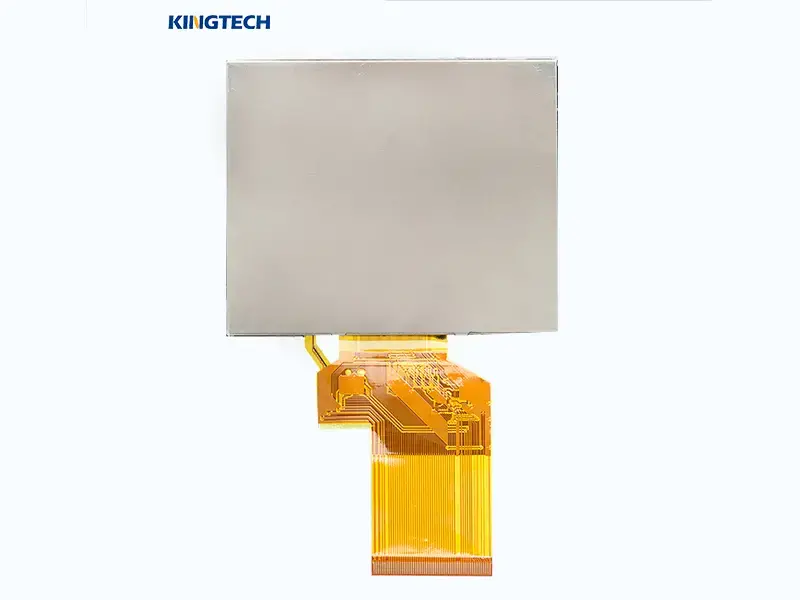

3.5 inch 320×240 HX8238D IC LCD display back view

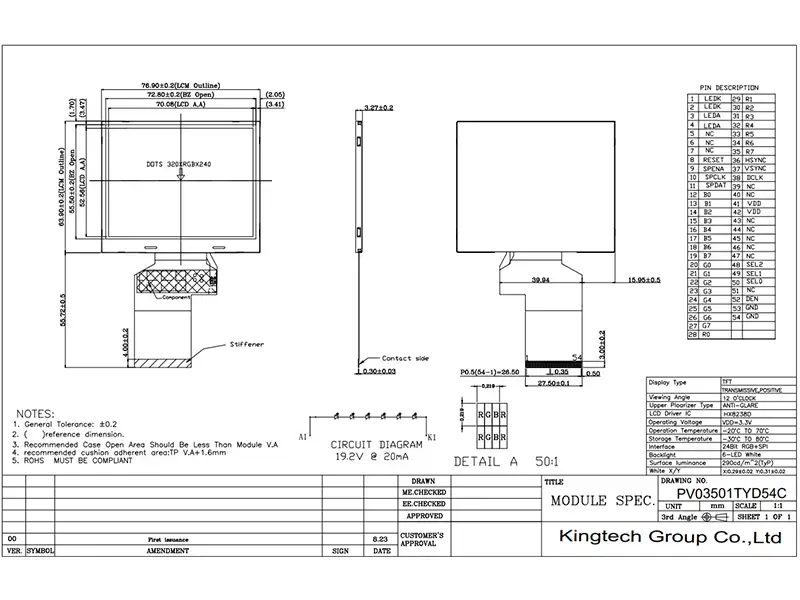

3.5 inch 320×240 HX8238D IC LCD display Machine Drawing
