ST7701S 30 pin stretched bar type lcd display 3.46″

Item3.46inch bar type TFT LCD display
Model NoPV034600RJ30A
Resolution340×800
Outline Dimension37.27(H)×89(V)×1.6(T)
Active Area(mm)33.97(H)×81(V)
InterfaceMIPI
Viewing AngleALL
Driving ICST7701S
Display ModeTFT/TRANSMISSIVE
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness350nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

3.46 inch 320×800 resolution MIPI IPS bar type LCD module

1. PV034600RJ30A mainly application  handheld device , Industrial ,medical equipment.
2. It with 320×800 resolution , ips all view angle, MIPI interface, ST7701S driver IC , 350 nits brightness, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application .

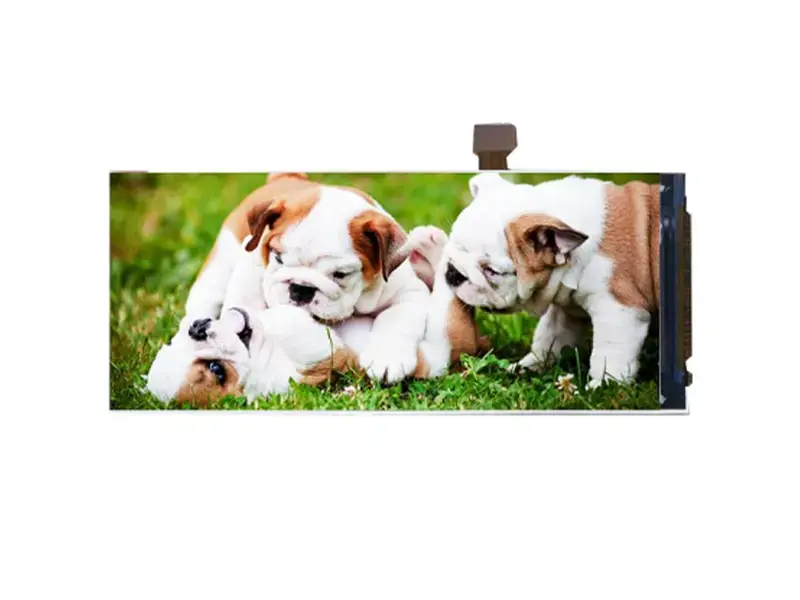

3.46 inch 320×800 IPS LCD display

320x480 mipi ips 3.46 inch stretched lcd



New Tab content 3

PV034600RJ30A
