ST7701S mipi ips 480×640 2.8 inch tft touch shield

Item480×640 2.8inch TFT LCD display
Model NoPV02811RJ24L-C
Resolution480×640
Outline Dimension46.2(H) ×65.18(V)×2.92(T)
Active Area(mm)43.2 (H)×57.6(V)
InterfaceMIPI 2line
Viewing AngleAll
Driving ICST7701S
Display ModeIPS / Transmissive / Normally Black
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness250nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

2.8 inch 480×640 VGA resolution MIPI IPS TFT capacitive touch screen

1. PV02811RJ24L-C mainly application for hand held device .
2. It with 480×640 resolution, MIPI 2line interface, ST7701S Driver IC,  250nits brightness, IPS/All/Full/Free viewing angle, existing capacitive touch panel .
3. It also can custom resistive and capacitive touch scree as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

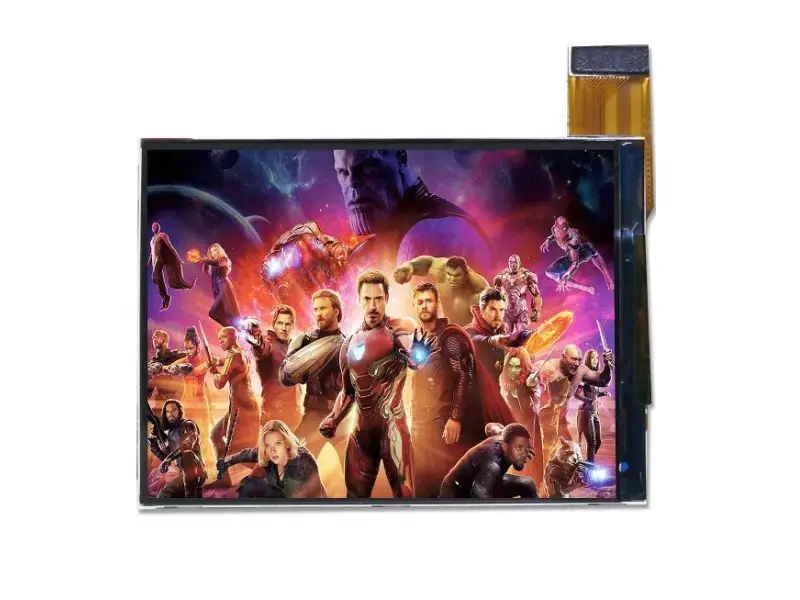

2.8 inch MIPI interface capacitive touch display module

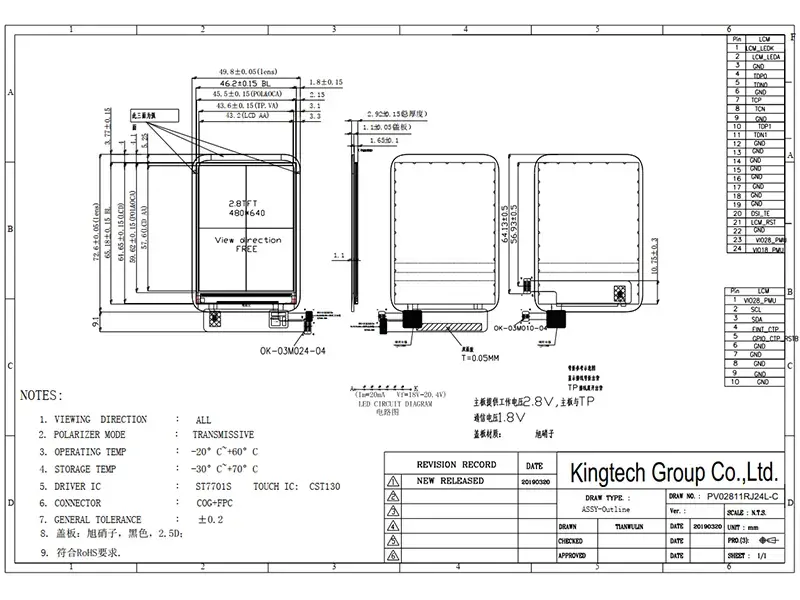

PV02811RJ24L-C
