Sunligt readable 1000 nits 240×320 IPS lcd screen 2 inch

Item2.0 inch 240×320 QVGA IPS display
Model NoPV02004LZR35G
Resolution240×320
Outline Dimension35.9*51.66*2.75
Active Area(mm)30.60*40.80
Brightness1000nits
Viewing AngleAll
Interface4SPI+16-bit RGB interface
Driving ICST7789V
PIN35
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
TouchCan custom capacitive/resistive

For product pricing,customization,or other inquiries:

Share to:

2 inch 240×320 QVGA IPS sunlight readable TFT LCD display .
1. PV02004LZR35G mainly application for Smart home and handheld devices.
2. It with 1000 nits high brightness sunlight readable, IPS, free, full, wideviewing angel ,240×320 QVGA resolution,4SPI+16-bit RGB interface.
3. It also can custom board and capacitive/resistive touch panel;
4. It is sunlight readable , small / tiny display.It can be well used for both indoor and outdoor .

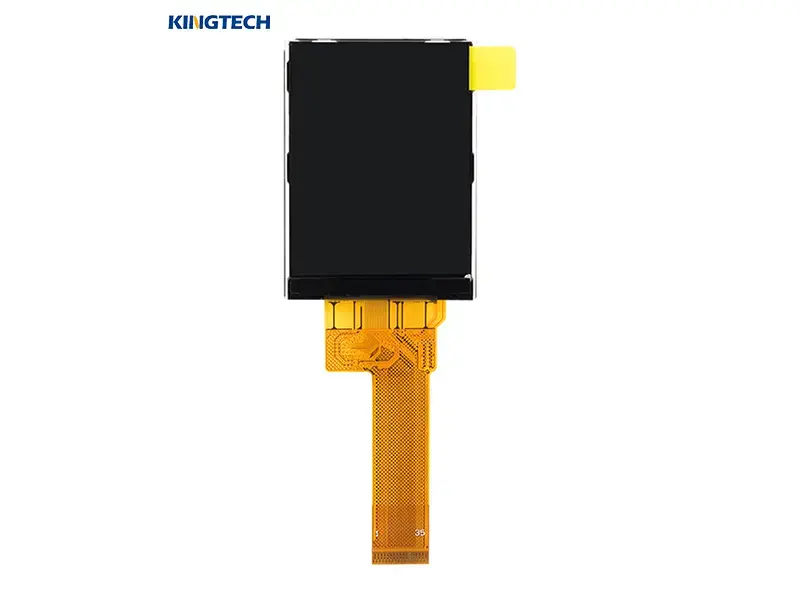

2.0 inch 240×320 high brightness front view

lcd screen 2 inch

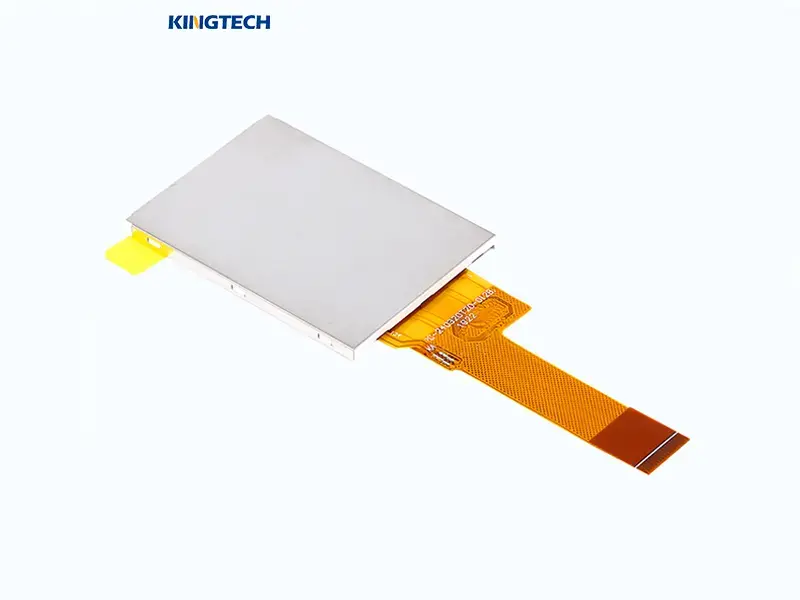

2.0 inch 240×320 high brightness back view

lcd screen 2 inch

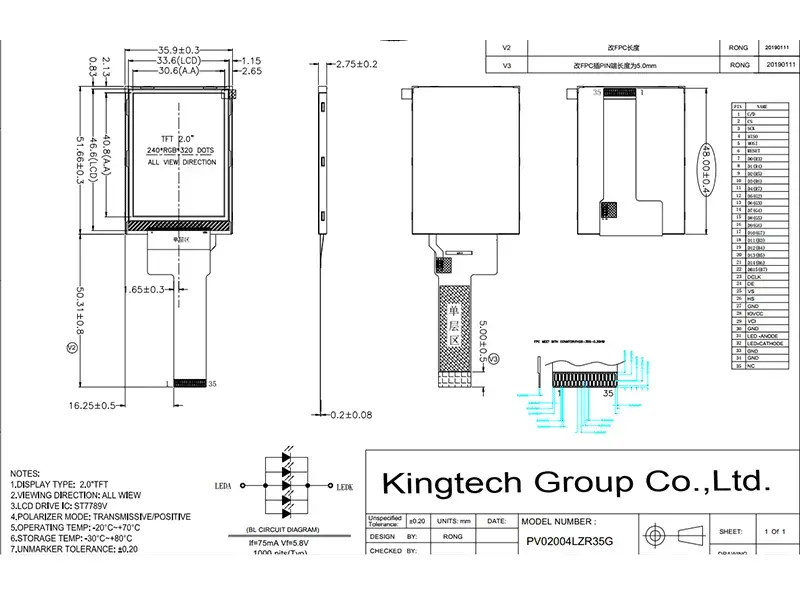

2.0 inch 240×320 high brightness Machine Drawing

2.0-PV02004LZR35G
