WVGA 800×480 resolution 7 inch tft lcd display with touch panel screen

Item7inch 800*480 LCD display for POS terminal
Model No.PV07052Y0140D-R
Resolution800*480

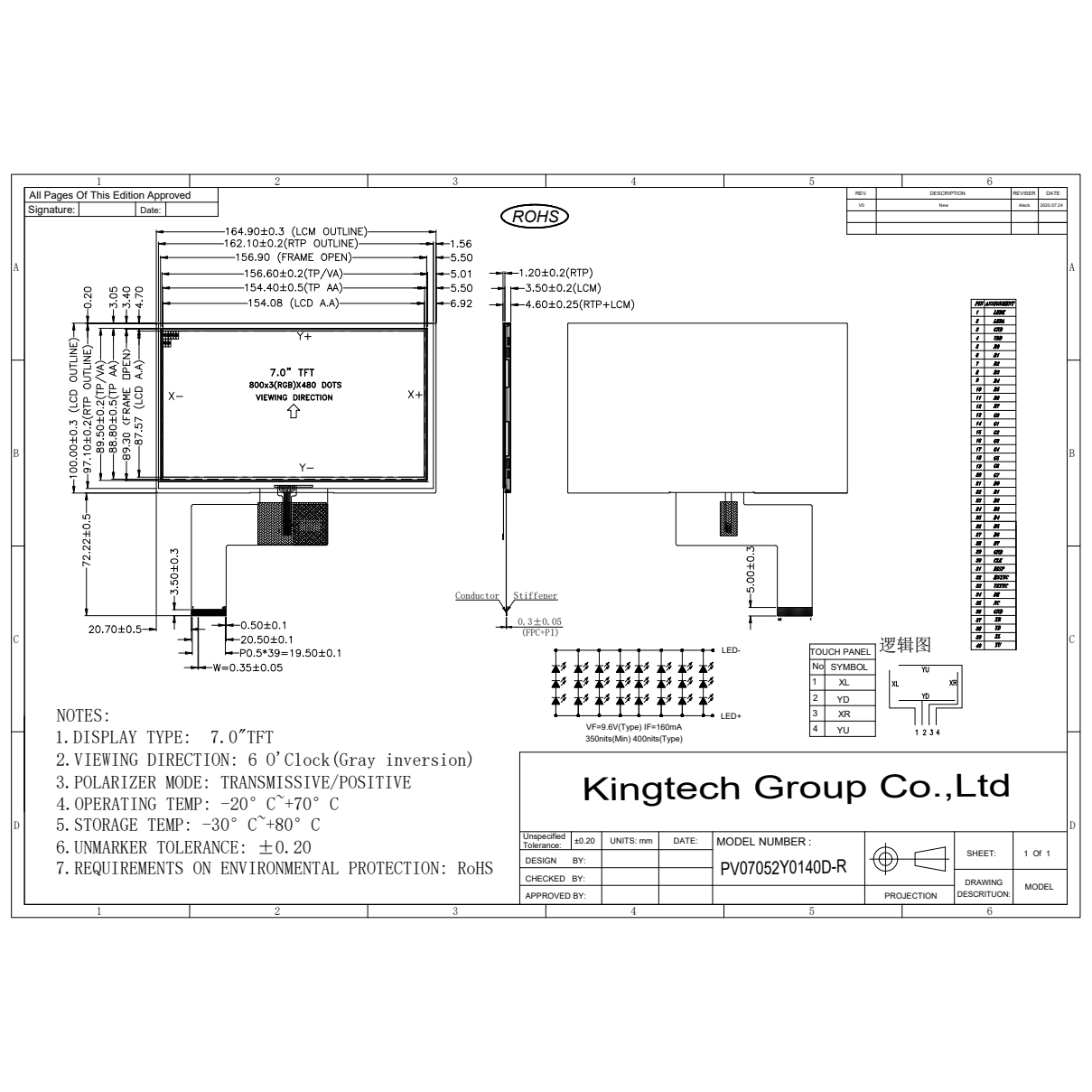

Outline Dimension (mm)164.90*100*4.6
Active Area (mm)154.08*85.92
Viewing Angle12 o’clock
Brightness400nits
Interface24-bit Parallel RGB Interface
Backlight3*8LED
Driving IC/
PIN No.40
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
Touch screenResistive touch and capacitive touch optional
ApplicationIndustrial, Automation, Medical, Smart Home, Pos terminal

For product pricing,customization,or other inquiries:

Share to:

  1. Classic 7 inch 800×480 LCD
  2. WVGAresolution
  3. TN, normally white, Postive display type
  4. Landscape
  5. Resistive touch and capacitive touch can be customized.

7 Inch 800*480 lcd Display touch screen display

7 Inch 800*480 lcd Display touch screen display
